General Use 105 Set Builder

Turn any graver into a 105 degree graver with parallel 15 Degree heels.

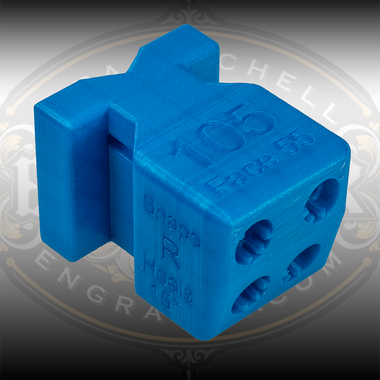

You don't have to learn complicated geometry any more to turn any graver into a 105 degree graver with 15 degree heels and a 55 degree face.  Using the General Use Graver Slide Sharpening Fixture for a 105 Degree graver, you can shape, sharpen and polish any graver accurately and repeatedly.

This is a favorite graver for many people.  It makes brighter cuts than a 90, but is easier to control than a 115.

Works with

• High Speed Steel Square Blanks
• Carbide blanks
• Quick Sharp Carbide Micro Gravers
• Repurposed jewelry burs
• Pre shaped gravers that you want to convert

Your gravers can be any length.  Can be used with a powered hone, sharpening stones, or our Engraver.com 5 inch Sharpening Disk Holder with diamond wheels or polishing film.

Build a set around this single Sharpening Block.  Get only what you need.  Options include:

• 55 degree Face Fixer - needed to make this graver, but if you already have one, you don't have to buy a second one
• Tower and Slimmer - needed to make this graver, but like the Face Fixer, you only need one
• Set of 3 Collets - gravers need to be in a Universal Collet to properly index in a Sharpening Block, but if you already have them, you don't need more
• Diamond Disks and Holder - economical alternative to a powered hone, but not necessary if you have a hone or a good set of sharpening stones

Engraver.com's Universal Collets are required for this sharpening system.  These come with the PulseGraver® or can be added as an option to this set.
